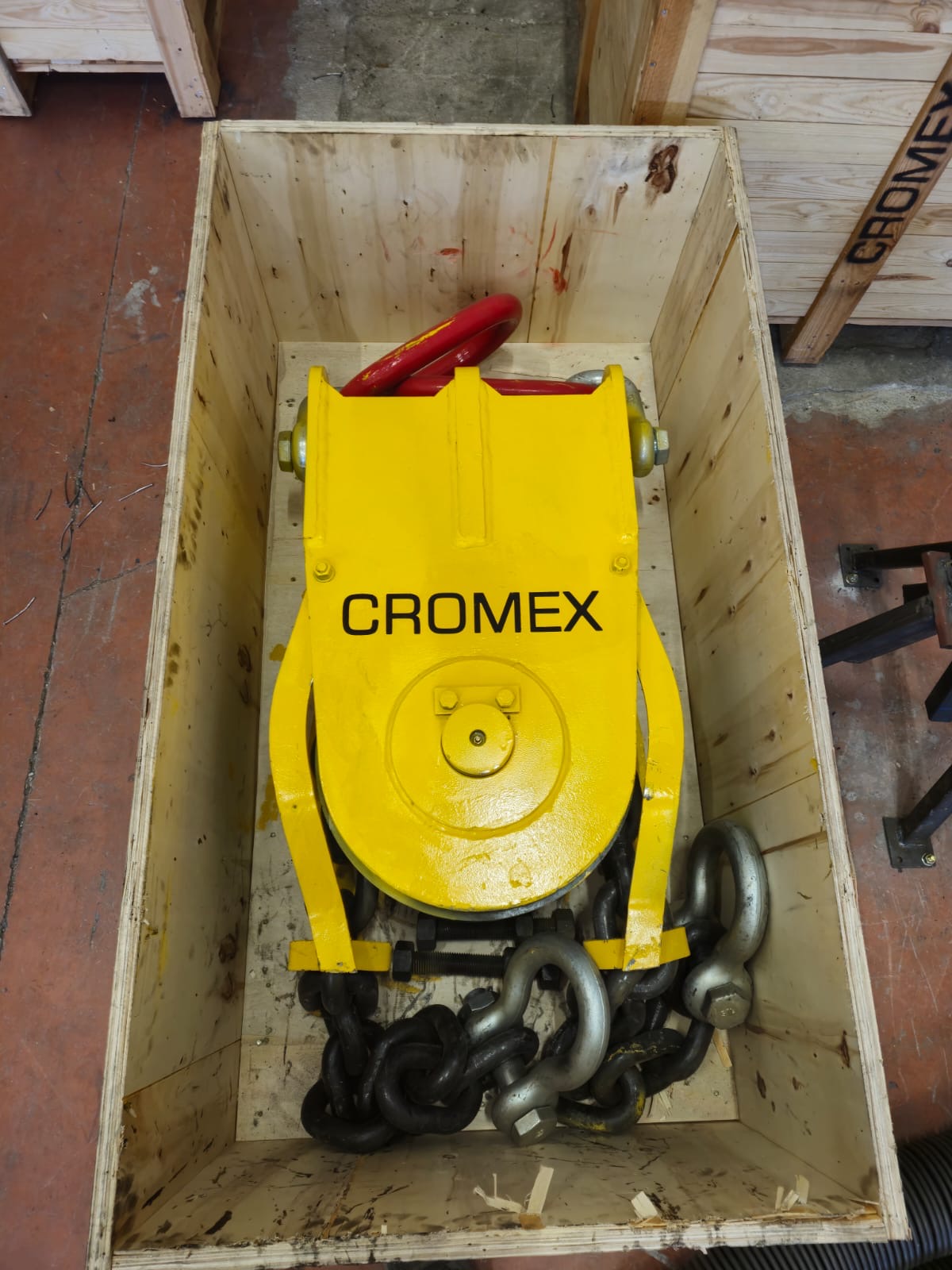

Gravity Centralizer

Description

Cromex Gravity Centralizer allows crane operators to seamlessly shift from a standard center lifting point to the optimal gravity-balanced position for unevenly loaded containers. This ensures a perfectly horizontal lift, reducing the risk of jammed containers in cell guides. The result? Increased safety, improved efficiency, and lower costs due to fewer damaged goods. Designed for versatility, the Centralizer is compatible with any fixed-frame container spreader in 20’, 30’, or 40’ sizes.

Precision Lifting for Offset Loads

The Cromex Gravity Centralizer offers a unique solution for safely handling cargo with an offset center of gravity—whether due to incorrectly stowed goods or asymmetric design. With this innovative system, crane operators can precisely adjust the lifting point, ensuring a safe, balanced, and controlled lift. This minimizes the risk of jammed containers in cell guides and sideways movements, reducing the chance of collisions and damage. Designed for versatility, the Centralizer is compatible with any fixed-frame container spreader, including 20ft and 40ft models. Despite its robust performance, it features an exceptionally low tare weight of just 425 kg.

Specifications:

Attachment: 32mm, Grade 8 chain (2976mm length)
Connections: Anchor shackle KL-8 M42 40T on both ends
Integration: 2 x 2-part wire slings to the spreader

Enhance safety, efficiency, and cargo integrity with the Cromex Gravity Centralizer—a game-changing addition to container handling operations.

Weight:

Centralizer: 330 Kg / 728 LBS
Chain: 95 Kg / 210 LBS
Total Weight: 425 Kg / 938 LBS

Warranty:

24 months
